FL-BC1220-9M - F1.8/12mm

Specifications
Description

High-resolution, compact, 12 Megapixel 1.1" (9 Megapixel 1"), fixed focal length lens with locking screws for C-Mount cameras

High resolving power of 147 lp/mm from the centre to the corners of the image

Remarks

Pixel Pitch: 3.45 µm (1.1”)

Format 1" (1.1")
Mount C
Focal Length 12.0 mm
Iris Range F2 - 16
Iris Type Manual
Max. Iris Aperture F:2.0
Focus Control Manual
Minimum Object Distance 80 mm
Filter Size (mm) 40.5 x 0.5

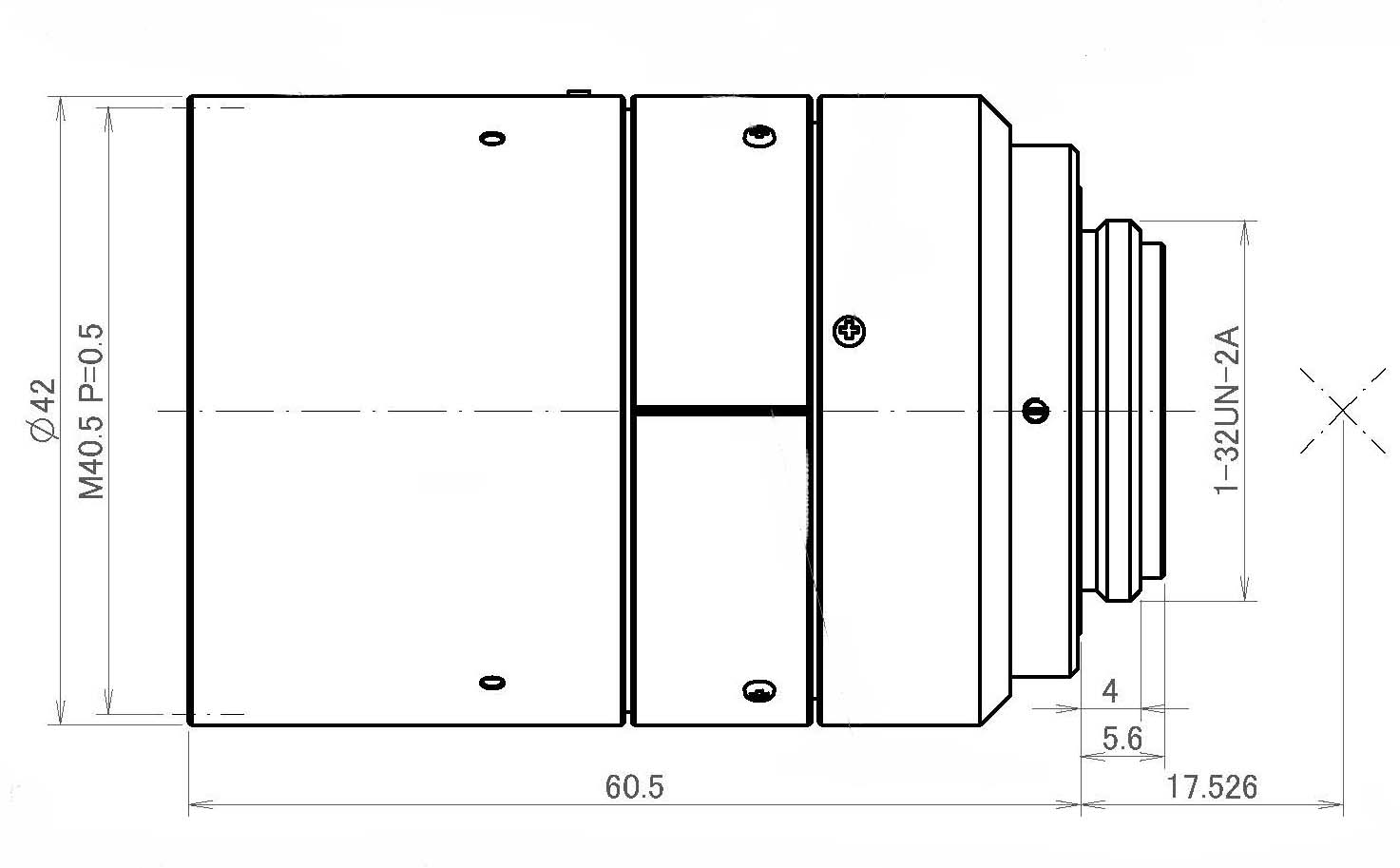

Dimensions (mm) Ø42 x 60.5
Weight 156 g
Temperature Range -10°C to +50°C
Comment Back focal length: 14.5 mm
Horizontal Angle Of View 1/3" 22.7°
Horizontal Angle Of View 1/2" 30.0°
Horizontal Angle Of View 2/3" 40.6°
Horizontal Angle Of View 1.1" 61.8°
Resolution 9MP (1") 12MP (1.1")
Price (Euro) 549.00
