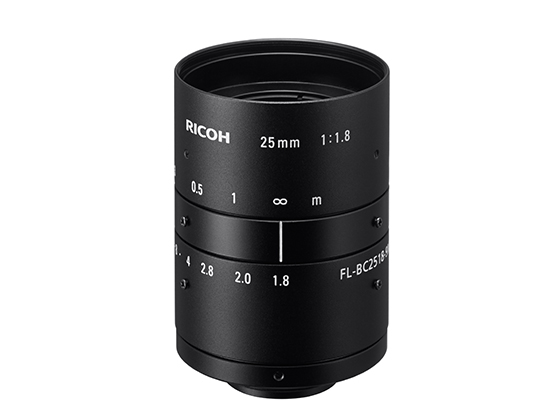

FL-BC2518-9M - F1.8/25mm

Specifications
Description

High-resolution, compact, 12 Megapixel 1.1" (9 Megapixel 1"), fixed focal length lens with locking screws for C-Mount cameras

High resolving power of 147 lp/mm from the centre to the corners of the image

Remarks

Pixel Pitch: 3.45 µm (1.1”)

Format 1" (1.1")
Mount C
Focal Length 25.0 mm
Iris Range F1.8 - 16
Iris Type Manual
Max. Iris Aperture F:1.8
Focus Control Manual
Minimum Object Distance 0.1 m
Filter Size (mm) 40.5 x 0.5
Dimensions (mm) 42 x 57.5
Weight 149 g
Temperature Range -20°C to +50°C
Comment Back focal length: 14.4 mm
Horizontal Angle Of View 1/3" 11.0°
Horizontal Angle Of View 1/2" 14.6°
Horizontal Angle Of View 2/3" 20.0°
Horizontal Angle Of View 1.1" 31.5°
Resolution 9MP (1") 12MP (1.1")
